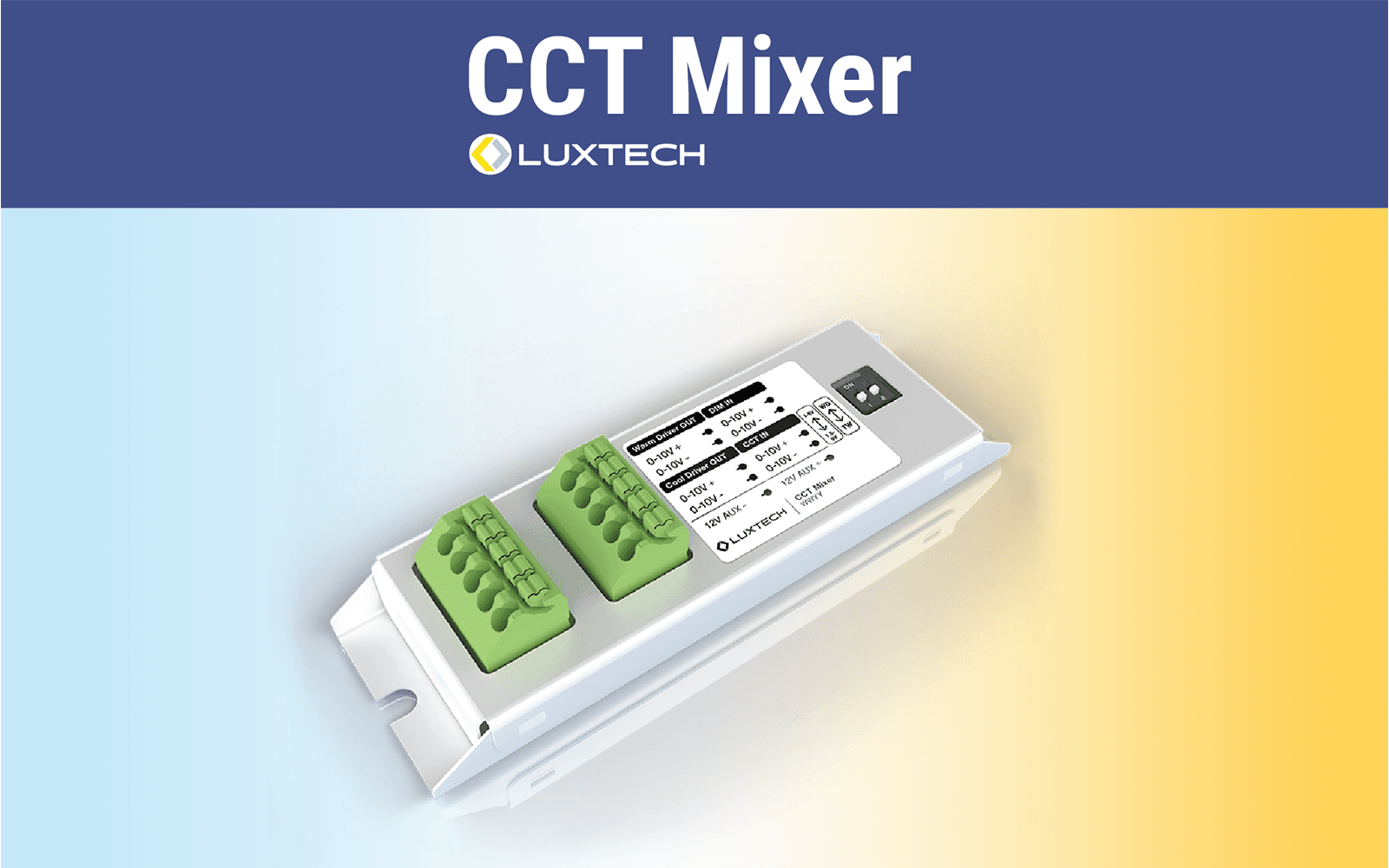

LUXTECH Launches CCT Mixer: Tunable White Controller
CCT Mixer by LUXTECH is designed to make common LED driver SKUs more versatile by giving them tunable white capability. Tunable White drivers often create extra fixture complexity, costs, configuration / programming time, and often with long lead times.
Published by LED professional ·
Additionally, tunable white drivers are often limited to 50W of power, so more drivers must be used to achieve longer run lengths or higher lumen outputs. All of these factors can be barriers for luminaire manufacturers to offer tunable white capability.
CCT Mixer integrates seamlessly with commonly stocked single channel, 0-10V, CC drivers to give them plug and play tunable functionality. The controller is selectable between tunable white and warm dim functions with a simple switch, saving time that would otherwise be spent programming and configuring a tunable white driver. Higher lumen outputs and longer runs are also achievable since a single device provides 0-10V control to 2 drivers, which can be up to 100W each. For tunable fixtures which require >50W, the CCT Mixer architecture reduces the number of costly tunable white drivers that are required.
NOW! REQUEST a CCT Mixer DEMO
Technical Specifications:
- Independently controls 2 constant current drivers for tunable control
- Compatible with variety of 0-10V constant current drivers and dimmers
- Selectable between tunable white and warm dim modes
- Max sinking current of 5mA/output
- Nominal <10% brightness maintained across tunable range
Misc:
- Stocked Domestically in Philadelphia PA USA
ABOUT LUXTECH LED Modules:
LUXTECH designs & manufactures versatile, specification-grade LED modules for architectural lighting manufacturers.
“We are a collection of engineers, designers and researchers based out of Philadelphia, PA and proudly work with architectural fixture manufacturers and teams around the world. Besides being inquisitive and inventive thinkers, we are also personable – we make sure our customers’ needs are heard and their expectations exceeded. We believe lighting has the power to define our world: it can elicit a mood, improve appearances, enhance performance, and influence our behavior. By pushing the latest lighting technology and manufacturing exceptionally built modules with the utmost customer care, we believe we can elevate illumination to foster a better world.”
-Graham Merrifield
LUXTECH Senior Applications Engineer
