Linear LED Driver from Diodes Inc. Simplifies Low Power LED Control

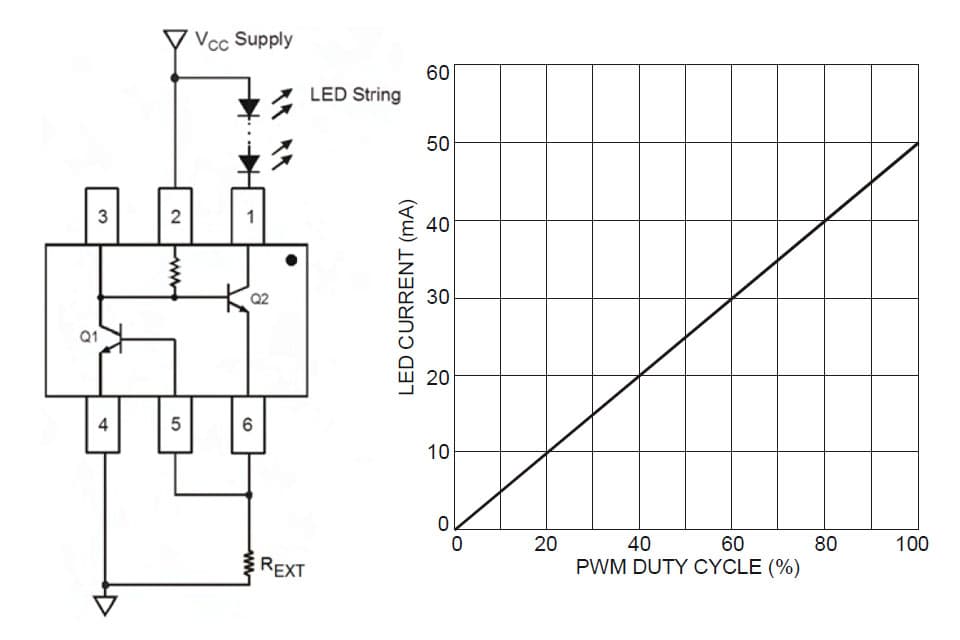

The LED current is set via an external low value resistor, the one additional component required by the driver. By generating a reference voltage of 0.65V across the resistor, the internal high gain transistor helps minimize power losses and ensures supply voltage headroom. The negative temperature coefficient of the reference voltage means that LED current is automatically reduced at high temperatures, thereby helping to protect LEDs and improve circuit reliability.

PWM dimming of the LED string is also simple to achieve by either driving the device bias pin with a low impedance voltage source or driving its enable pin with an external open collector NPN transistor or open drain N-Channel MOSFET. The AL5802’s wide ambient temperature operating range of -40ºC to +125ºC enables it to be circuit mounted very close to the LEDs in space limited lighting applications.

The AL5802 30V linear LED driver from Diodes Incorporated is available for $0.66 USD each in 1k quantities. Further information is available at www.diodes.com
