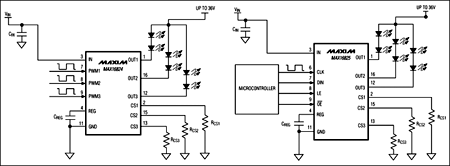

Independently Dimmable, Three-Channel LED Drivers for Compact and Simple Driver Circuits

The current at each output is programmable by means of an external current-sense resistor. The MAX16824 features three PWM inputs that control the duty cycle of the output current, allowing a wide LED dimming range to be implemented. The PWM inputs also function as on/off control for each corresponding output. The MAX16825 offers a 2Mbps, 4-wire serial interface, a 3-bit shift register, and a 3-bit transparent latch. The serial interface allows a microcontroller to configure the output channels using four inputs (DIN, CLK, LE, active-low OE) and a data output (DOUT). DOUT allows multiple drivers to be cascaded and operated together.

The MAX16824/MAX16825's on-board pass elements minimize the need for external components, while at the same time, providing ±5% LED current accuracy. Additional features include a +5V (±5%) regulated output with 4mA output current capability and thermal protection.

The MAX16824/MAX16825 are available in a thermally enhanced 16-pin TSSOP-EP package and specified over the -40°C to +85°C temperature range.

Key Features:
6.5V to 28V Operating Range
Outputs Connected to 36V Supply for Long LED Strings
Three 36V-Rated Output Channels with Independently Adjustable LED Current
150mA Output Current Per Channel
±5% LED Current Accuracy
PWM Dimming
Three Independent Dimming Control Inputs (MAX16824)
4-Wire Serial Interface LED Current Chopping (MAX16825)
+5V (±5%) Regulated Output with 4mA Source Capability
Fast Transient Dimming Response
200mV Current-Sense Reference Reduces Power Loss
Thermal Shutdown
-40°C to +85°C Operating Temperature Range
Thermally Enhanced, 16-Pin TSSOP Exposed Paddle Package

Applications/Uses:
Architectural and Decorative Lighting
Automotive Lighting
Indoor and Outdoor LED Video Displays
Industrial Lighting
LCD Display Backlighting
Mood Lighting
