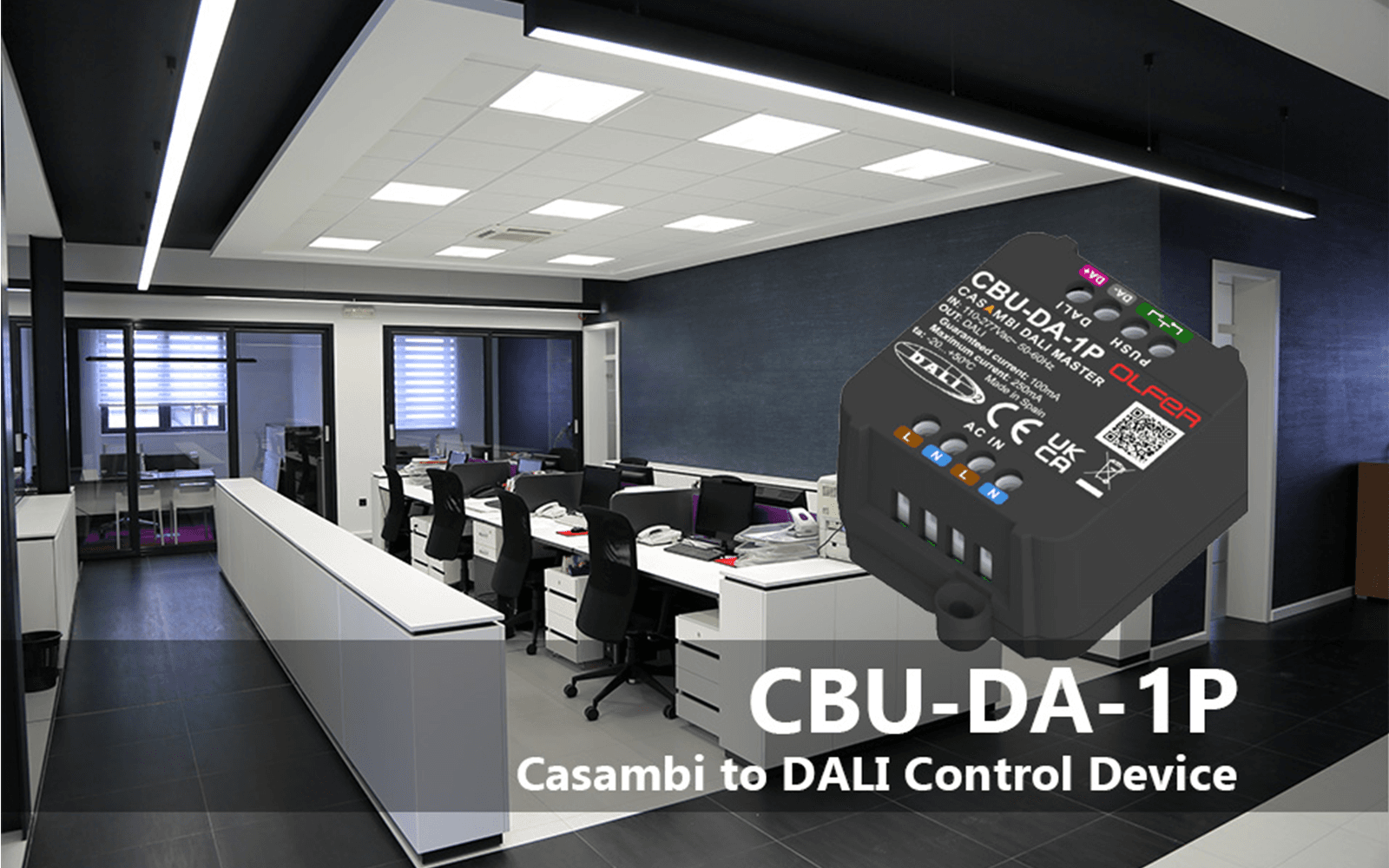

CBU-DA-1P: Casambi to DALI Control Device from Electrónica OLFER

Read more about OLFER's Casambi to DALI Control Device...

CBU-DA-1P has an integrated DALI Bus Power Supply with 100mA guaranteed current, which means that it can control up to 50 DALI LED drivers. These drivers could be also grouped into DALI groups (up to 8).

There are many Casambi fixture profiles available for the CBU-DA-1P with different control modes: Broadcast, Short Address, Groups, DT6, DT8, TW, RGBW, XY... This device has a push button input for controlling Casambi devices and a CBM-003 integrated and can be linked to Long Range networks.

The CBU-DA-1P has DALI-2 Certificate and allows control of 8 DALI directions individuality and 8 DALI groups and it allows to use DALI-2 mobility and luminosity sensors.

This device can also be configured as 2 push button inputs and as a DALI Gateway. It compact size makes it ideal for any luminaire installation.

Configuration and control can be done from a mobile phone or tablet using the free CASAMBI APP (available for iOS and Android).

FEATURES

• Casambi to DALI control device
• DALI-2 certified
• Input voltage: 110-277 Vac
• AC loop: Duplicated mains terminals for easy integration into lighting fixtures
• Dedicated push button input for controlling Casambi devices
• Integrated CBM-003 module (it can be paired to Casambi Long Range networks)
• Integrated DALI bus power supply with 100 mA guaranteed current
• Possibility to control up to 50 DALI LED drivers
• Possibility to individually control up to 8 DALI Short Addresses
• Possibility to individually control up to 8 DALI Groups
• Supports DALI-2 motion & light sensors
• More than 85 different Casambi fixture profiles available
